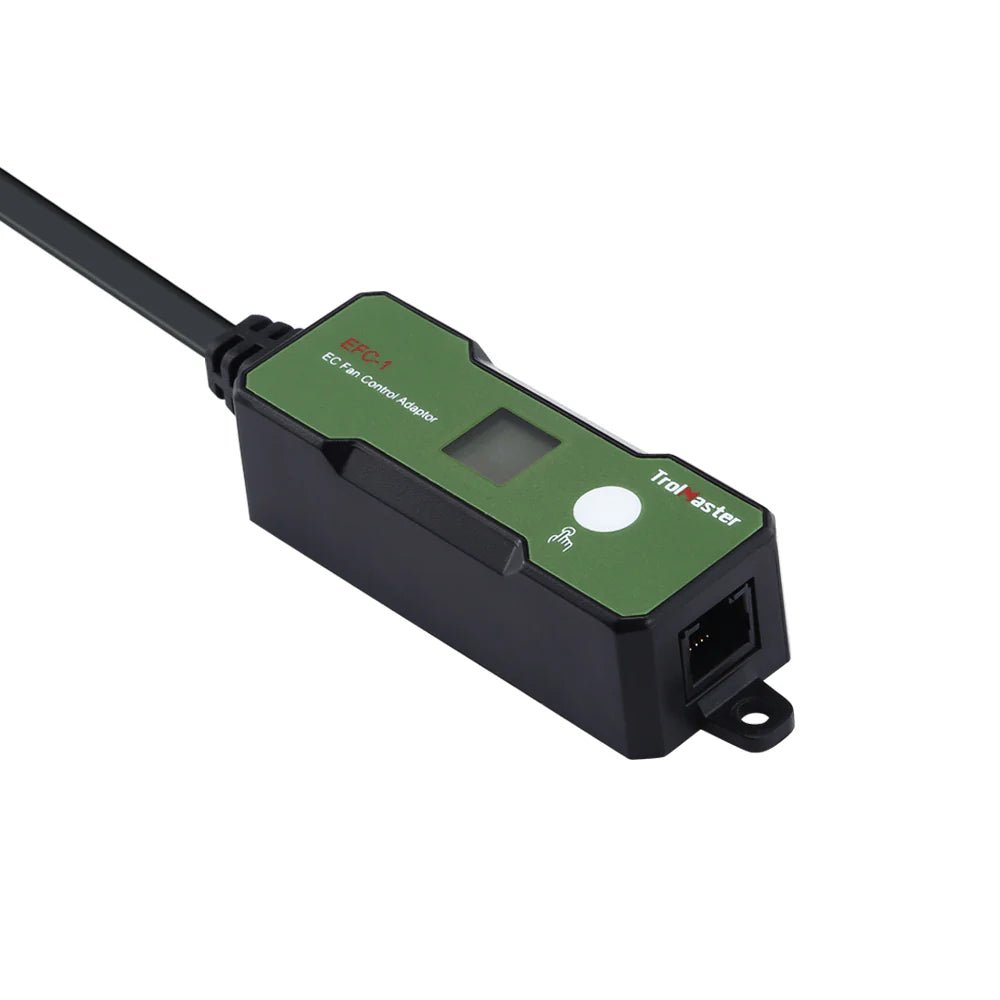

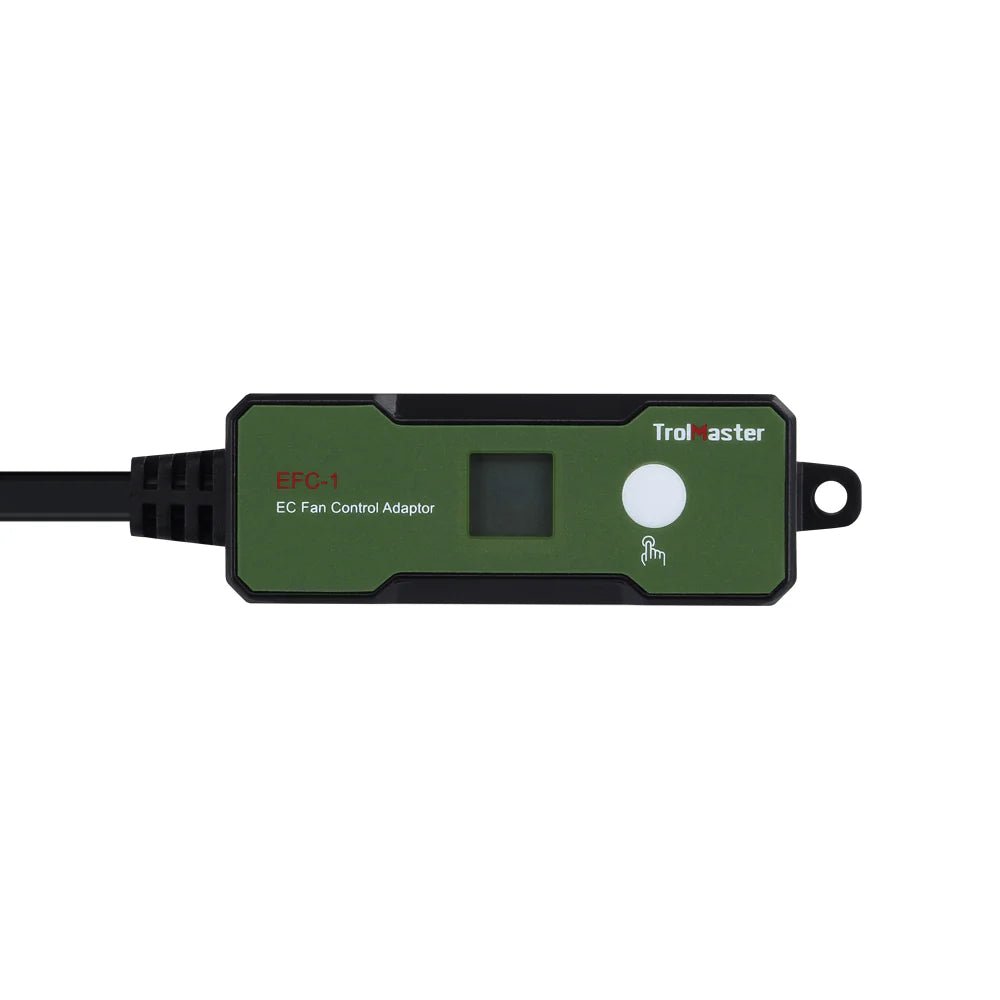

EFC-1 is specially designed to be used with Tent-X Control System to control the variable fan speed of the EC Fan. The EFC-1 needs to select the mode of output to control the EC Fan in PWM or 0-10V.
Each Tent-X can connect a corresponding EFC-1 for Exhaust (F1) and Intake (F2). Each Exhaust (F1)/ Intake (F2) line requires one EFC-1.
LCD Display for PWN / 0-10V mode addressing
Seamless Connection with Tent-X Main Controller and EC Fan
Plug & Play

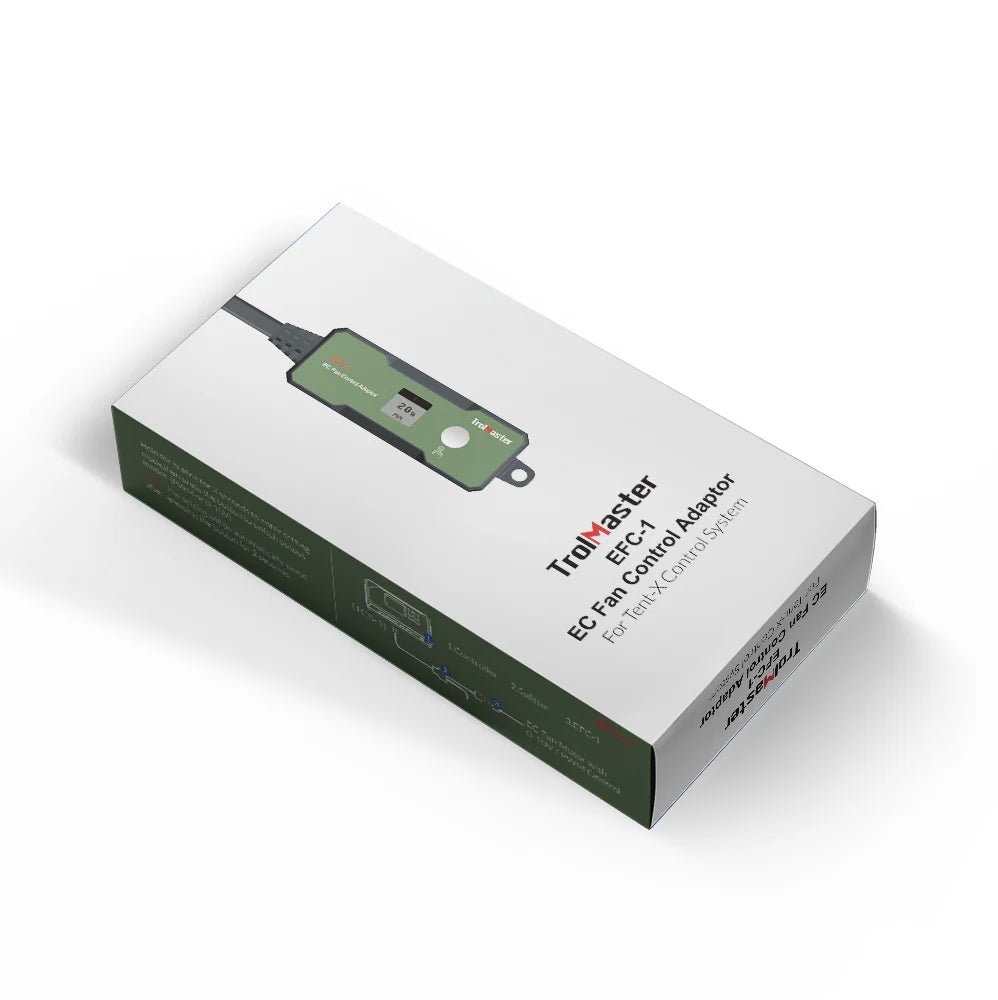

1x EC Fan Control Adaptor
Input Voltage: 12V
Max Output Voltage: 0-10V, PWM 50mA
Max Current: 0.1A
Wokring Environmnets: Temperature 32-122°F (0-50°C), Humidity ≤90%
