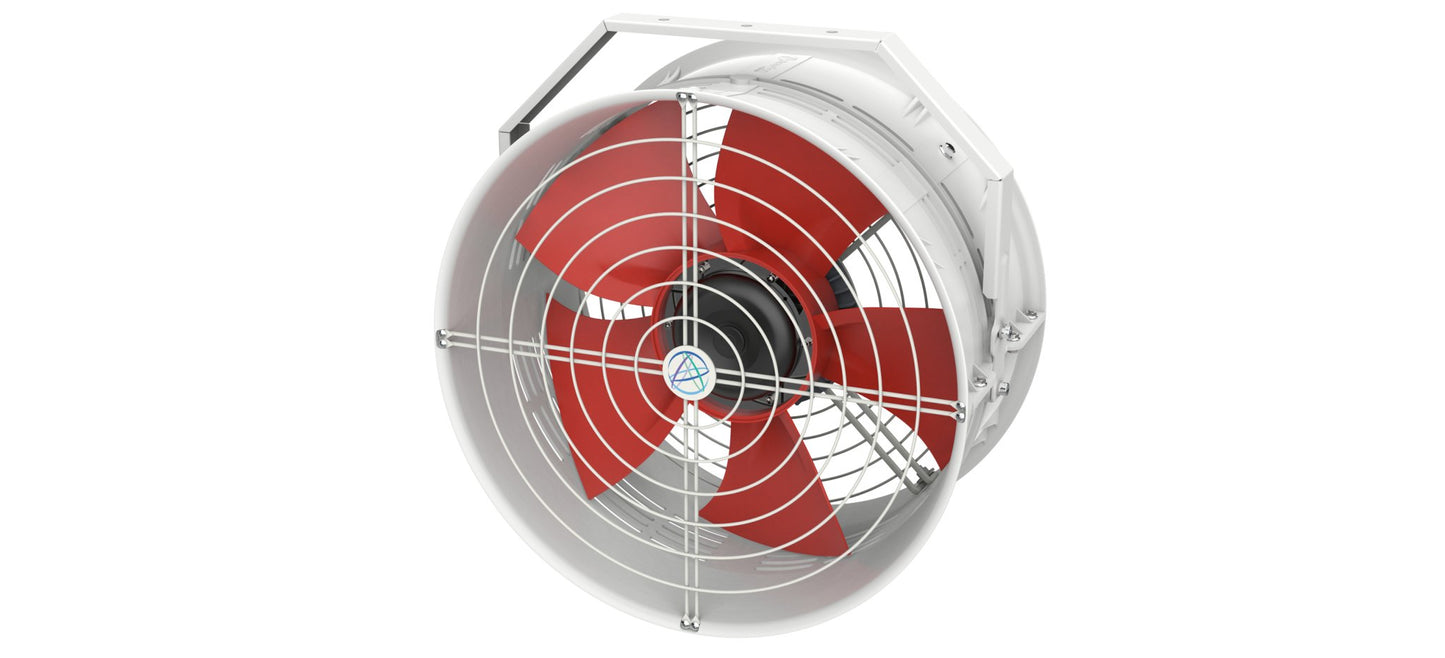

HE-20M 20 Inch High Velocity Fan Pro Model

The 20 Inch High Velocity Fan Pro Model is a compact and efficient fan designed to improve air circulation and ventilation in indoor spaces. With its powerful motor, it moves a significant volume of air, removing stale air, and humidity. Its versatile design allows easy installation in various duct systems, ensuring a fresh and comfortable environment.

20" Drum Fan Pro Model
200-277VAC Automatic Voltage Sensing
Unparalleled Controlability Functions when paired with TrolMaster Controllers

1x ECS-7 Cable
1x HE-20M Drum Fan Pro Model

Operating Voltage: 200-277VAC
Rated Current: 3.0A Max
Rated input power: 610W Max.
No. of Blades: 5
Max. air flow: 4980 cfm
Max. static air pressure: 150 Pa
Rotating Direction: CCW
Operating temperature: -4~140°F
Mean Time To Failure (MTBF): 50000H (25°C)
IP Rating: IP54
Dimensions: 12.20 x 22.04 x 23.38 inch
Net Weight: 13.50KG/29.76lb
