TrolMaster

LMA-T Lighting Control Adapter T, for Controlling ThinkGrow LED

LMA-T Lighting Control Adapter T, for Controlling ThinkGrow LED

Regular price CHF 95.55
Regular price Sale price CHF 95.55
Sale Sold out
Taxes included.
Title

TrolMaster’s Hydro-x system can control most of the supplemental lighting fixtures sold today. Most light manufacturers provide the ability to control their lighting systems using what known as a low-volt control. That low-volt control can take many forms and communication protocols. TrolMaster makes several types of lighting adapters (LMA units) that allow the Hydro-x to control lights using their low-volt control option.

The LMA-T works specifically with the ThinkGrow LED systems to provide two channel control, which allows separate control for full spectrum and second red output levels on the ThinkGrow LEDs.

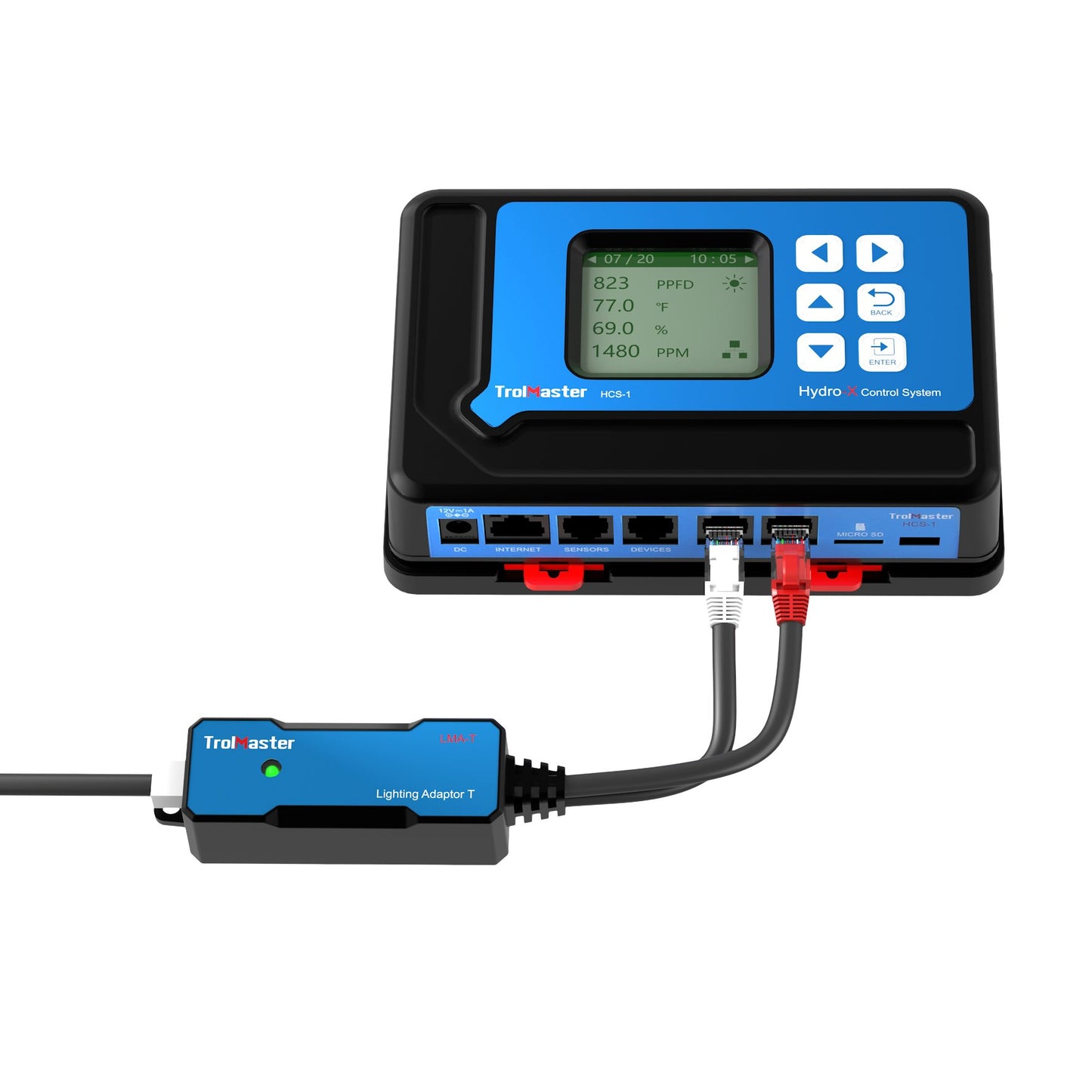

The LMA-T simply connects to the lighting control ports Line 1 and Line 2 on the HCS-1. Once connected, the user can then set individual ON and OFF times and the dimming settings for the full spectrum LEDs and also for the second red LEDs.

The LMA-T then is connected to the RJ type lighting control cables where each of the LEDs are connected back to the controller in a daisy-chain configuration using plug-and-play connections.

One adaptor could run up to 256 ThinkGrow LEDs.

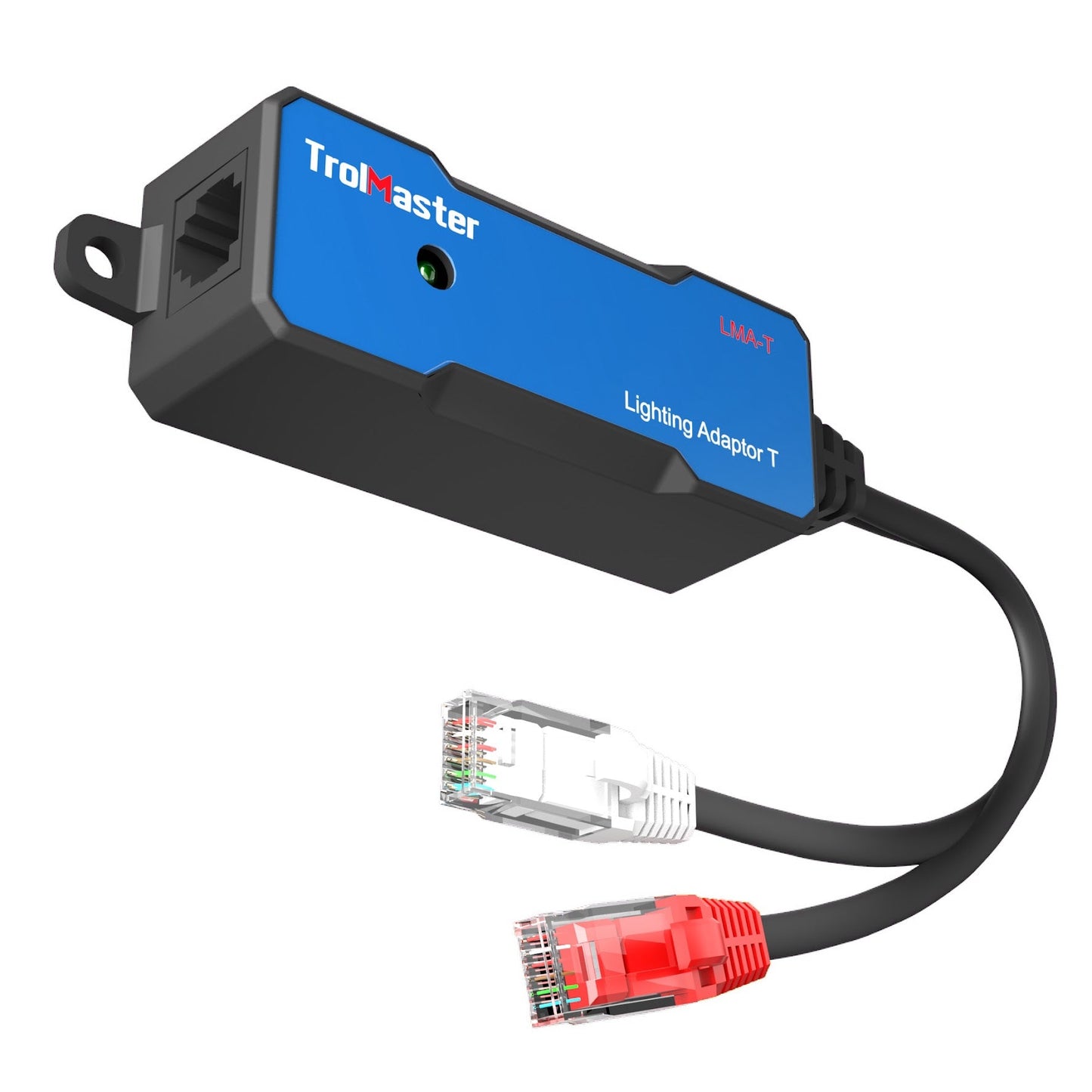

* Convert RJ12 to Water Proof Connector Cable included.

LED Indicator
Plug & Play

1x LMA-T
1x RJ12 to customized waterproof connecter

Output Voltage: 0~11.5V
Maximum Current: 0.2A
Working Environment: Temperature 32-122°F, Humidity≤90%
Packaging Dimensions: 156mm(L) x 83mm(W) x 30mm(H)
