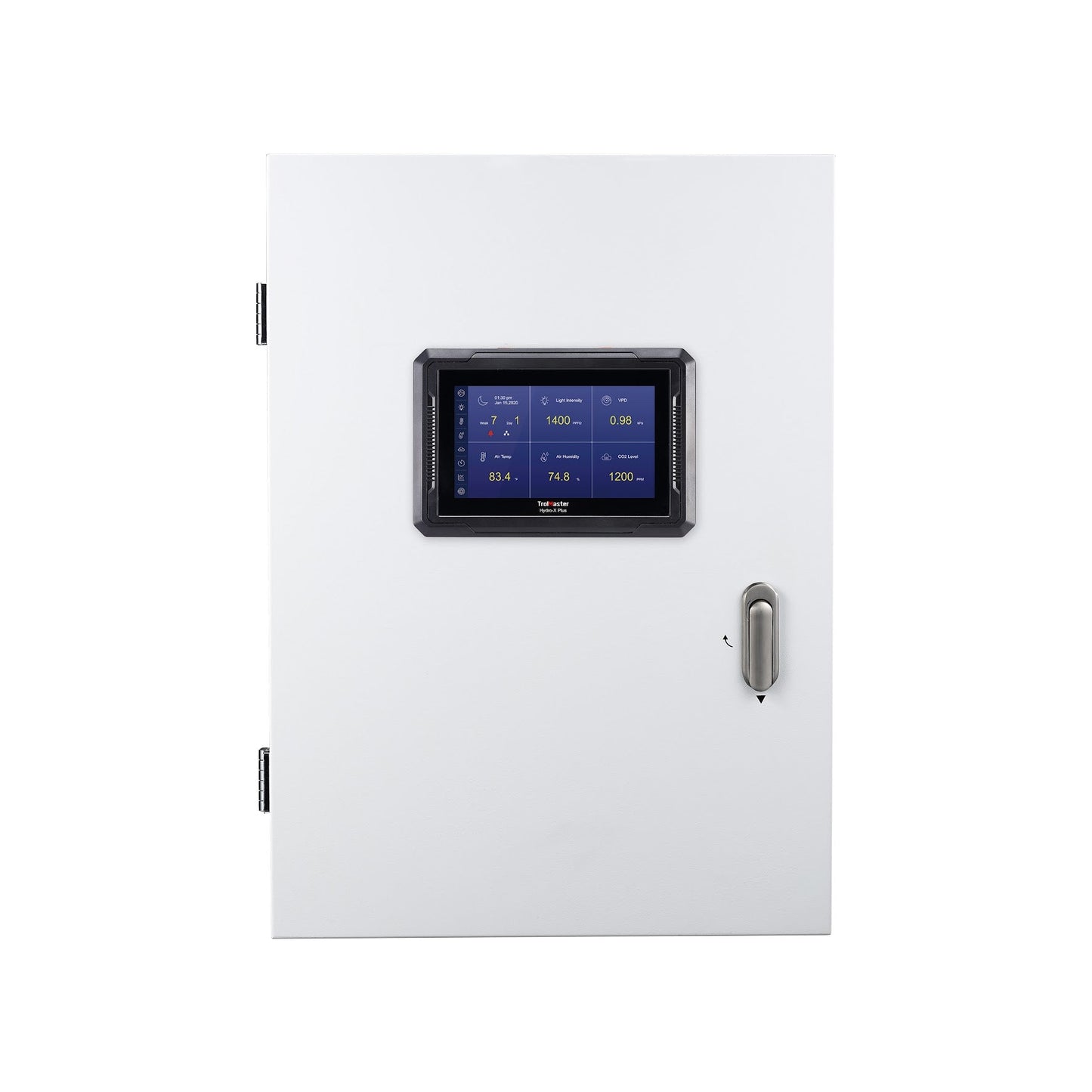

SCC-3 25“ Standard Controller Cabinet for Hydro-X Plus

The SCC-3 25"Controller Cabinet is modular electrical enclosures and wire management systems for your TrolMaster Control system.
The enclosures are designed to allow any of TrolMaster’s controllers to be installed in a professional way. All of your device stations can be mounted inside the electrical cabinet to keep the device stations clean and dry. You’ll now be able to safely mount power supplies, modules, and organize your RJ12 cables with ease.

Guaranteed Industrial Rated & Waterproof
ALL-IN-ONE Controller & Device Module Housing
Design Your Own Cabinet by Using Bi-directional RJ12 Cables
Detachable Design
Superior Safety System

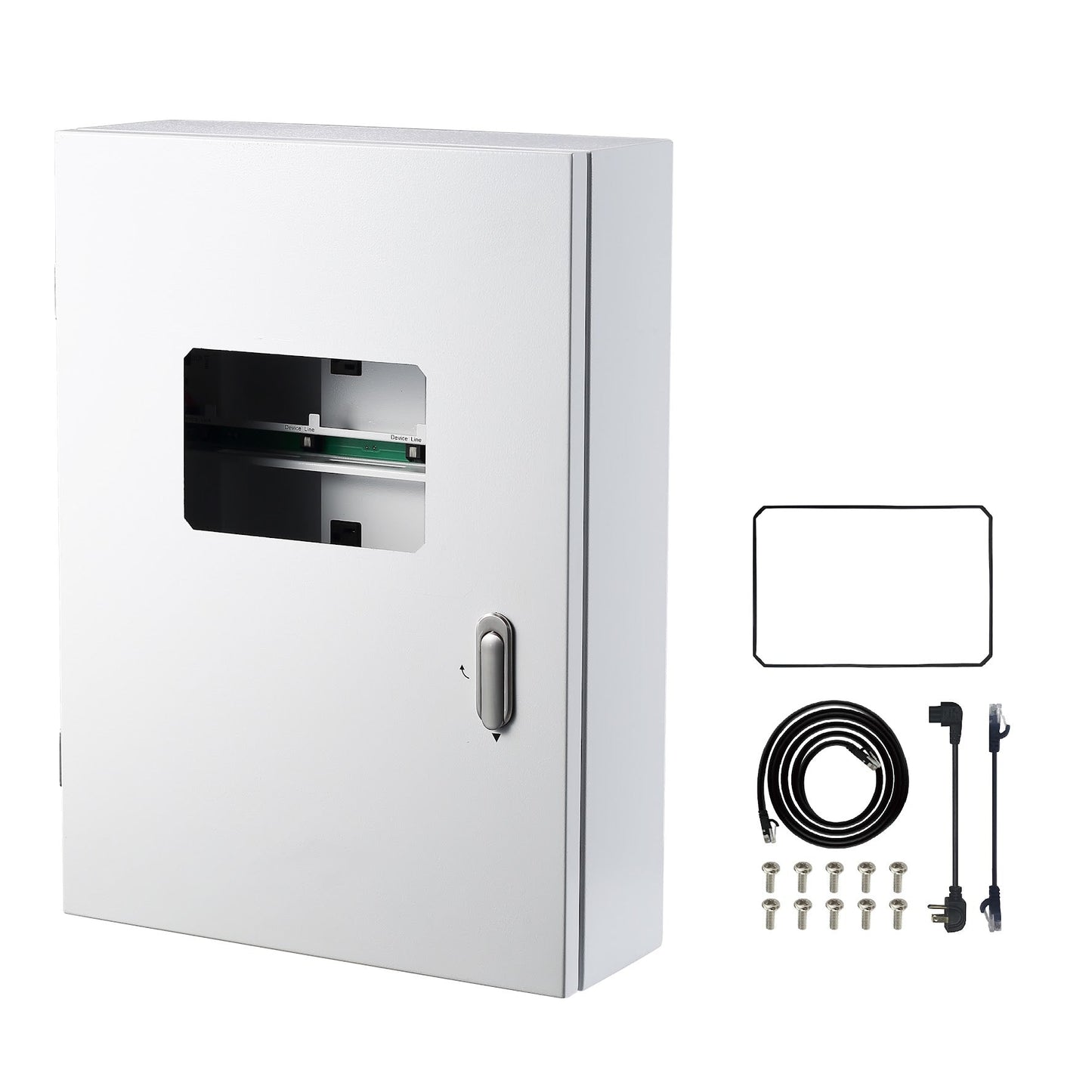

Controller Cabinet x1
Installation Manual x1
Long RJ-12 Cables x4
Short RJ-12 Cables x16
Power Cables (for OA6-24/OA6-110) x4
OA6-24/OA6-110 Screw Set x 10

Dimensions: 25" (L) x 18" (W) x 6.26" (H)
Cabinet Capacity:
Splitter Board #1: 10 ports (top)
Splitter Board #2: 6 ports (top)
Splitter Board #3: 17 ports (top)
Splitter Board #4: 2 x 4 ports (middle splitter bars)
Splitter Board #5: 6 ports (bottom)
Power Outlet: 4 + 1 + 6
Operating Conditions:
Enclosure Rating: IP56 (equivalent to NEMA 4X rating)
Temperature Resistance: 32°-104°F
Input Voltage: 120V
Maximum Amperage: 15A
